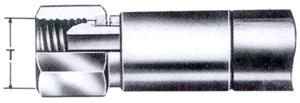

A Type - Female Swivel
| Part No. | Thread Size (T) | Part No. | Thread Size (T) |
|---|---|---|---|
| A-03B | 1/8" BSP | A-03M | M12 x 1.5 |
| A-04B | 1/4" BSP | A-04M | M14 x 1.5 |
| A-05B | 3/8" BSP | A-05M | M16 x 1.5 |
| A-06B | 1/2" BSP | A-06M | M18 x 1.5 |
| A-08B | 5/8" BSP | A-08M | M22 x 1.5 |
| A-10B | 3/4" BSP | A-10M | M26 x 1.5 |
| A-12B | 1" BSP | A-12M | M30 x 1.5 |
| A-16B | 1¼" BSP | A-16M | M38 x 1.5 |
| A-20B | 1½" BSP | A-20M | M45 x 1.5 |
| A-24B | 2" BSP | A-24M | M52 x 1.5 |

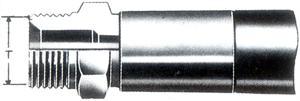

B Type - Male Thread
| Part No. | Thread Size (T) | Part No. | Thread Size (T) |
|---|---|---|---|
| B-03B | 1/8" BSP | B-03M | M12 x 1.5 |
| B-04B | 1/4" BSP | B-04M | M14 x 1.5 |
| B-05B | 3/8" BSP | B-05M | M16 x 1.5 |
| B-06B | 1/2" BSP | B-06M | M18 x 1.5 |
| B-08B | 5/8" BSP | B-08M | M22 x 1.5 |
| B-10B | 3/4" BSP | B-10M | M26 x 1.5 |
| B-12B | 1" BSP | B-12M | M30 x 1.5 |
| B-16B | 1-1/4" BSP | B-16M | M38 x 1.5 |
| B-20B | 1-1/2" BSP | B-20M | M45 x 1.5 |
| B-24B | 2"BSP | B-24M | M52 x 1.5 |
| B-32B | 2-1/2" BSP | B-32M | M65 x 2 |

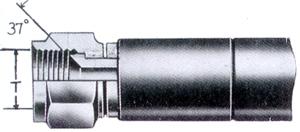

C Type - Female Swivel (JIC)
| Part No. | Thread Size (T) | |
|---|---|---|
| C-03 | 7/16" - 20 UNF | In case Female Seat angle is other than 74º please specify 60º or 90º |
| C-04 | 1/2" - 20 UNF | |
| C-05 | 5/8" - 18 UNF | |
| C-06 | 3/4" - 16 UNF | |
| C-08 | 7/8" -14 UNF | |
| C-10 | 1-1/16" - 12 UN | |
| C-12 | 1-5/16" - 12 UN | |
| C-16 | 1-5/8" - 12 UN | |
| C-20 | 1-7/8" - 12 UN | |
| C-24 | 2-1/4" - 12 UN | |
| C-32 | 2-1/2" - 12 UN |
D Type - Taper Male Thread
| Part No. | Thread Size (T) |
|---|---|
| D-03 | 1/8"- NPTF |
| D-04 | 1/4"- NPTF |
| D-05 | 1/4"- NPTF |
| D-06 | 3/8" -NPTF |
| D-08 | 1/2"- NPTF |
| D-10 | 3/4" -NPTF |
| D-12 | 1" - NPTF |
| D-16 | 1-1/4"-NPTF |
| D-20 | 1-1/2" - NPTF |
| D-24 | 2" - NPTF |
| D-32 | 2-1/2" - NPTF |
