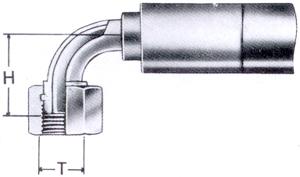

E Type - Female Swivel (Elbow)

Part No.	Threads (T)	Height (Short) (H) mm	Height (Long) (H) mm
E-03	1/8" BSP	11.0	-
E-04	1/4" BSP	12.0	27.0
E-05	3/8" BSP	15.0	32.0
E-06	1/2" BSP	16.5	36.0
E-08	5/8" BSP	18.0	40.5
E-10	3/4" BSP	22.0	50.0
E-12	1" BSP	26.0	59.0
E-16	1-1/4" BSP	30.0	66.0
E-20	1-1/2" BSP	32.0	66.0
E-24	2" BSP	35.0	86.0
E-32	2-1/2" BSP	48.0	100.0
Metric Threads can also be supplied.

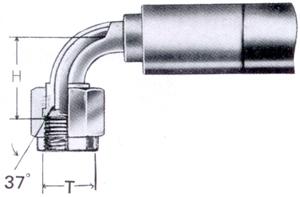

F Type - Female - Swivel-JIC (Elbow)

Part No.	Threads (T)	Height (H) mm
F-04	7/16" 20 UNF	18.5	In case Female angle is other than 74º, Please specify 90º or 60º
F-05	1/2" - 20 UNF	30.0
F-06	9/16" -18 UNF	30.0
F-08	3/4"-16 UNF	33.0
F-10	7/8" -14 UNF	41.0
F-12	1-1/16" -12 UN	46.0
F-16	1-5/16" - 12UN	55.0
F-20	1-5/8"-12 UN	63.0

F-04S	5/8"-18 UNF	18.5
F-06S	3/4"-16 UNF	28.5
F-08S	7/8" - 14 UNF	33.0
F-10S	1-1/16"-14 UNF	41.0
F-12S	1-5/16"-14 UNF	46.0

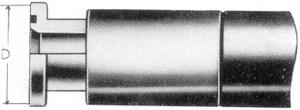

G Type - Flange Straight

Part No.	Flange Size (D)	Part No.
G-08	30.0
G-12	38.1
G-16	44.5
G-20	50.8
G-24	60.5
G-32	71.4

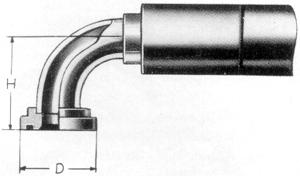

H Type - Flange Elbow

Part No.	Flange Size (D)	Height (H) mm
H-12	38.1	54.0	Different Bend Angles can be provided
H-12/16	44.5	54.0
H-16	44.5	60.5
H-16/20	50.8	60.5
H-20	50.8	63.5
H-20/24	60.5	63.5
H-24	60.5	70.0
H-32	71.4	82.5

H-12S	38.1	58.0
H-16S	44.5	75.0
H-20S	50.8	80.5
H-24S	60.5	137.0
H-32S	71.4	143.0

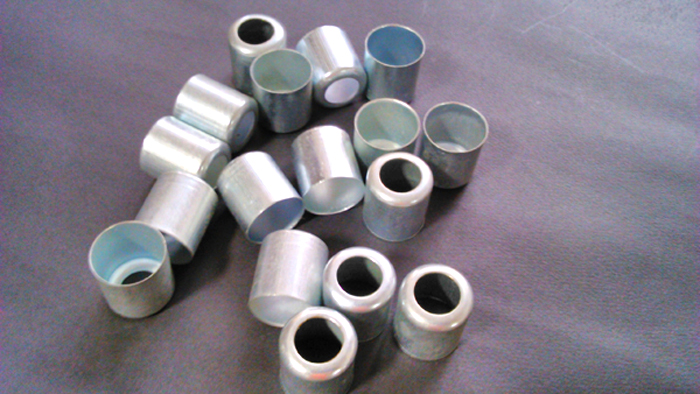

Low Pressure Crimping Caps

End fitting also can be made as per your Technical requirements.
